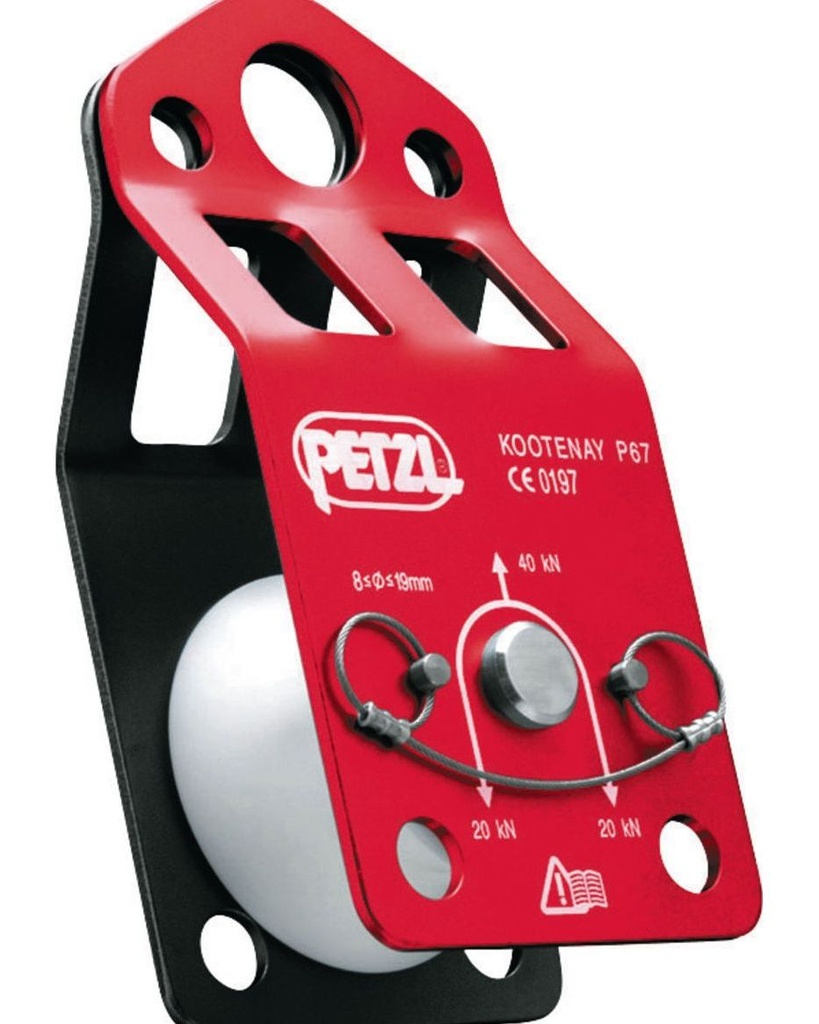

KOOTENAY Knot-passing pulley

KOOTENAY is a knot-passing pulley that allows passage of joining knots. The large diameter sheave mounted on sealed ball bearings ensures excellent efficiency.

Description
High clearance rope channel allows passage of joining knots (long raise or Tyrolean traverse on two ropes)
Large diameter sheave mounted on sealed ball bearings for excellent efficiency
Locking pins on the sheave allow pulley to be used as an anchor

Specifications
Rope compatibility: 8 to 19 mm
Sheave diameter: 76 mm
Ball bearings: yes
Maximum working load: 5 kN x 2 = 10 kN
Weight: 1390 g
Height: 26 cm
Certification(s): CE EN 12278, UKCA
