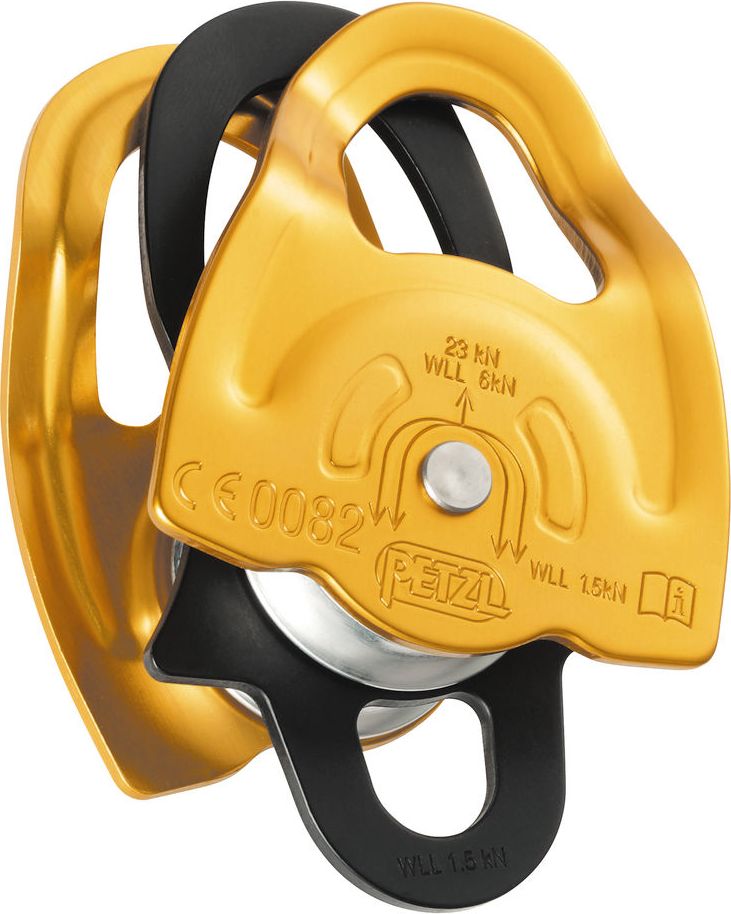

P66A GEMINI Double Prusik pulley

GEMINI is a compact double pulley that sets up progress capture systems of high mechanical advantage.

Description
Special side plates designed for use with a Prusik friction hitch in progress capture systems
Parallel mounted sheaves and auxiliary attachment point for creating different types of hauling systems
Sheave mounted on sealed ball bearings for excellent efficiency
Compact and lightweight

Specifications
Rope compatibility: 7 to 11 mm
Sheave diameter: 25 mm
Ball bearings: yes
Efficiency: 91 %
Maximum working load: 2 x 1,5 kN x 2 = 6 kN
Weight: 135 g
Certification(s): CE EN 12278, NFPA 1983 Technical Use, UKCA
