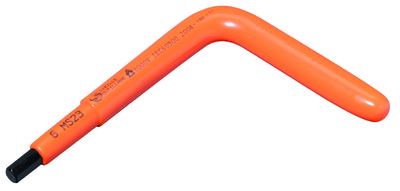

MS23 1000V Insulated 90° bent male hex key

STANDARD(S) : EN 60900 / IEC 60900 / ISO 2936
USE : Essential for manoeuvring hex screws into difficult positions.

ADVANTAGES :
• Large arm for a good grip.
• Optimised insulation thickness on the working head side.

TABLE LEGEND : Overall length resistance : ± 5 mm of the nominal value.

MS23 03 = Diameter (mm): 3 , L long handle (mm): 123 , L small handl (mm): 83 , Weight (g): 10
MS23 04 = Diameter (mm): 4 , L long handle (mm): 124 , L small handl (mm): 84 , Weight (g): 15
MS23 05 = Diameter (mm): 5 , L long handle (mm): 125 , L small handl (mm): 85 , Weight (g): 20
MS23 06 = Diameter (mm): 6 , L long handle (mm): 125 , L small handl (mm): 85 , Weight (g): 30
MS23 07 = Diameter (mm): 7 , L long handle (mm): 126 , L small handl (mm): 86 , Weight (g): 45
MS23 08 = Diameter (mm): 8 , L long handle (mm): 126 , L small handl (mm): 86 , Weight (g): 50
MS23 09 = Diameter (mm): 9 , L long handle (mm): 127 , L small handl (mm): 87 , Weight (g): 70
MS23 10 = Diameter (mm): 10 , L long handle (mm): 128 , L small handl (mm): 88 , Weight (g): 80
MS23 11 = Diameter (mm): 11 , L long handle (mm): 128 , L small handl (mm): 88 , Weight (g): 90
MS23 12 = Diameter (mm): 12 , L long handle (mm): 128 , L small handl (mm): 88 , Weight (g): 100
