Sm'D D-shaped locking carabiner

Compact, lightweight and very versatile asymmetrical carabiner

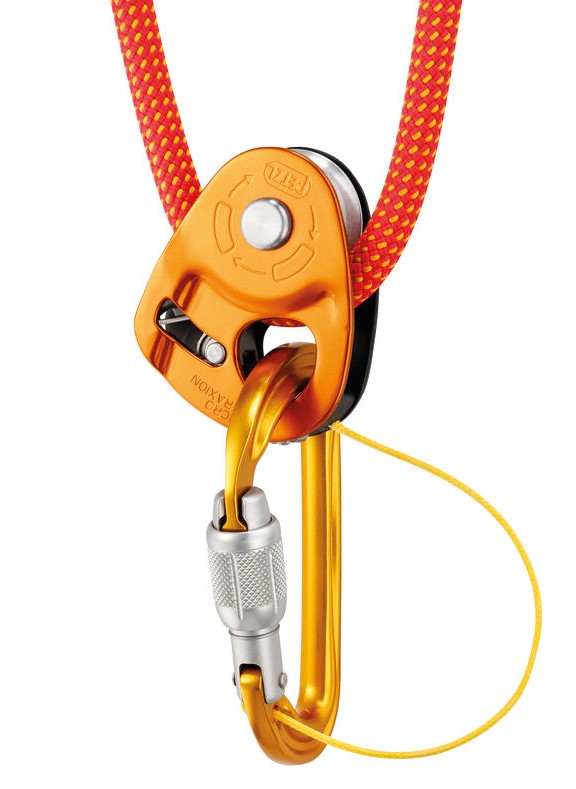

Sm’D is a lightweight, compact, D-shaped locking carabiner. It is easy to handle and is perfectly suitable for connecting to a GRIGRI or GRIGRI + belay system. It is available in three locking system versions.

Description
Great versatility:
- D shape guarantees effectiveness in many situations, thus responding to multiple uses: connection to a belay system, to a pulley, or to the end of a lanyard...
- compact and very lightweight
Good handling and ergonomics:
- D shape for good handling
- H-shaped cross-section contributes to better grip when wearing gloves
- Keylock system to avoid any involuntary snagging of the carabiner
Available in three locking systems, each for different situations:
- TRIACT-LOCK: automatic locking with triple-action gate opening

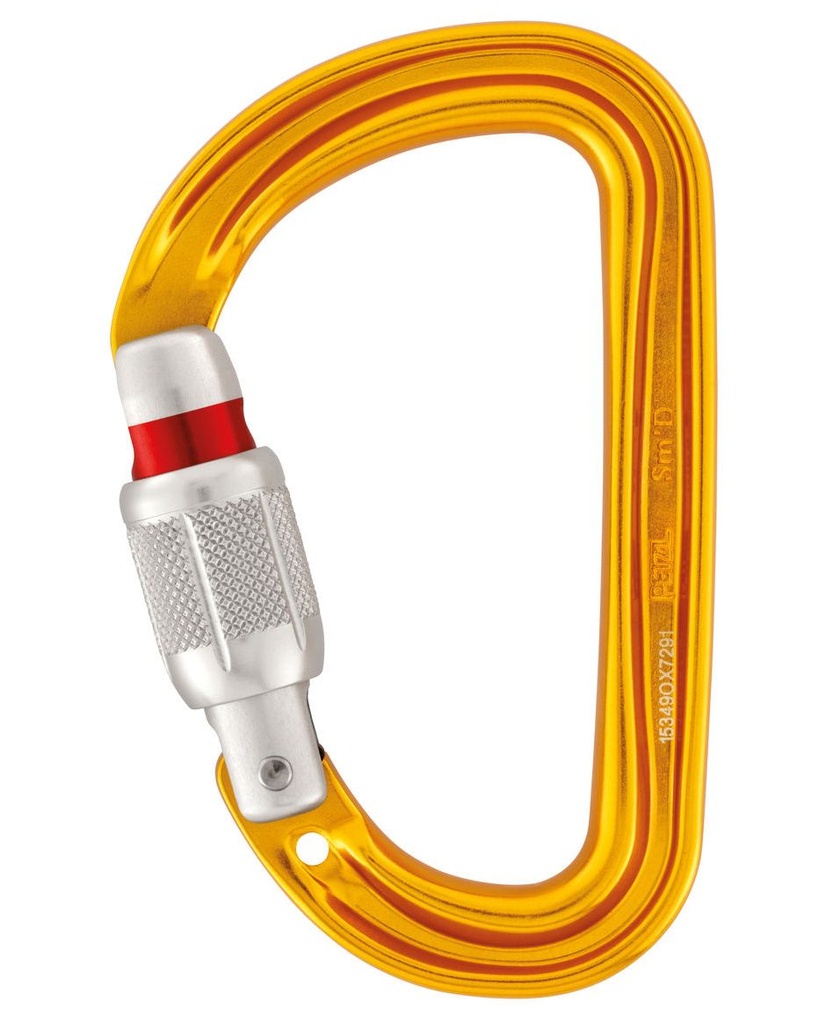

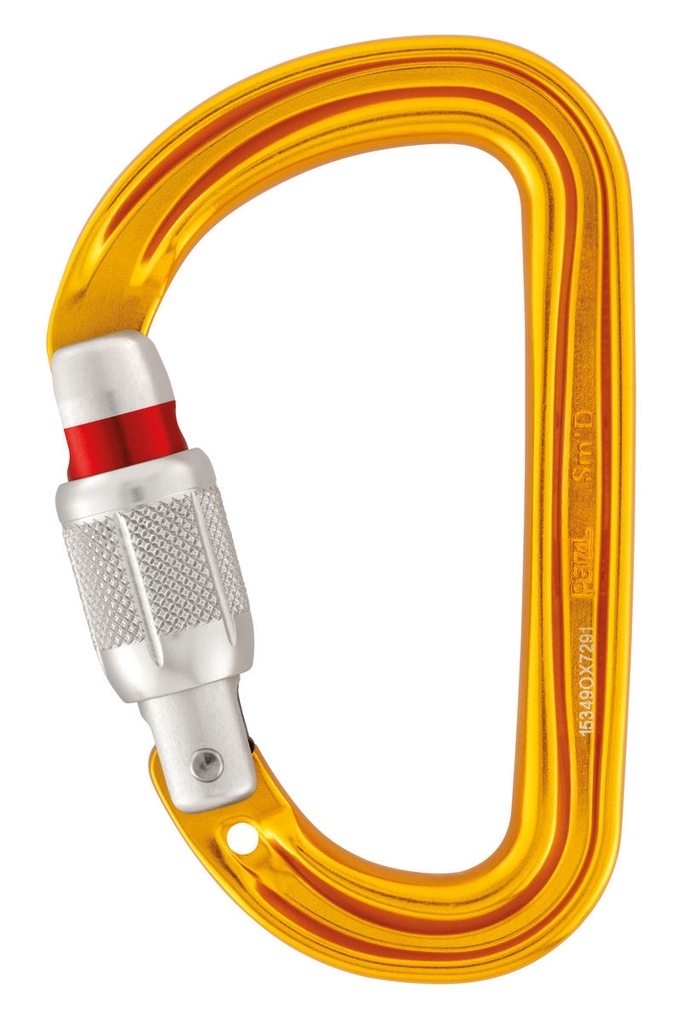

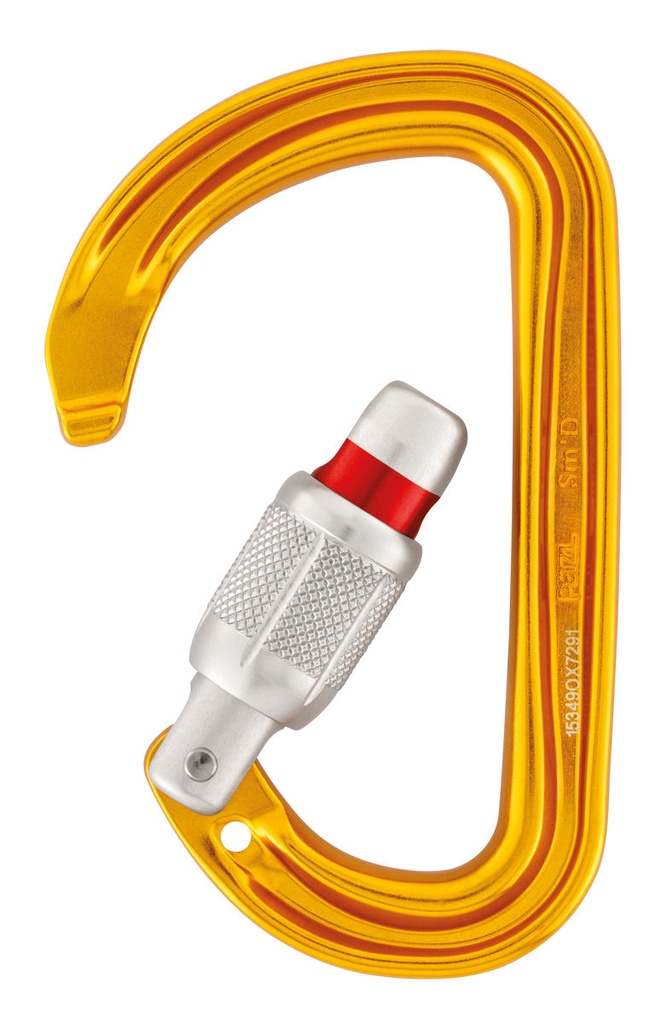

- SCREW-LOCK: easy-to-open system, locking or not, according to the needs of the user. The red band provides a visual warning when the carabiner is unlocked

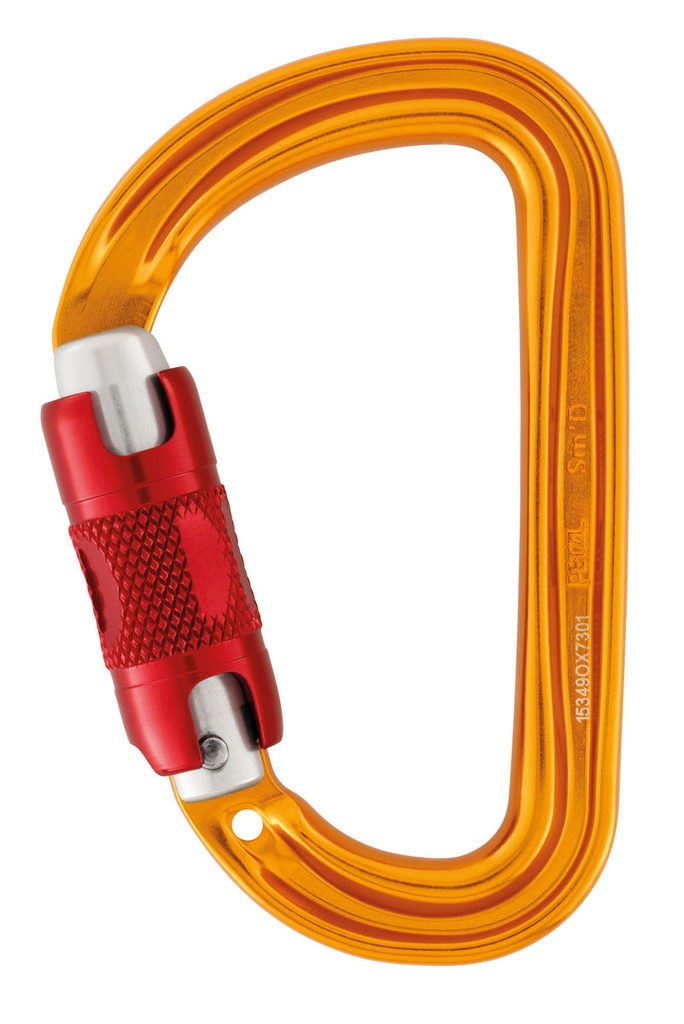

- TWIST-LOCK: specific use when quick opening is key (e.g. at the end of a lanyard) and when connecting a GRIGRI or GRIGRI + to the harness
Specifications
Material(s): aluminum
Certification(s): CE EN 12275, UIAA, CE EN 362, EAC, GB/T 23469 / B
Major axis strength: 23 kN
Minor axis strength: 8 kN
Open gate strength: 7 kN

References: M39A TL, Locking system: TRIACT-LOCK, Color(s): Gray, Gate opening: 18 mm
References: M39A RL, Locking system: TWIST-LOCK, Color(s): yellow, Gate opening: 20 mm
References: M39A SL, Locking system: SCREW-LOCK, Color(s): Gray, Gate opening: 20 mm
References: M39A TLN, Locking system: TRIACT-LOCK, Color(s): Black, Gate opening: 18 mm
