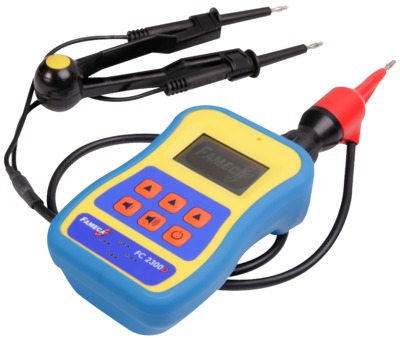

FC2300CP Cable and phaser identifier for de-energized three phase cables

SPECIFICATIONS :
Convenient for :
- Paper-lead or dry cables, steel armored cables
- Overhead and underground.
- Cable length up to 10km.

Availability :
-The transmitter can operate on battery or mains supply.
- It is designed to be permanently loading.

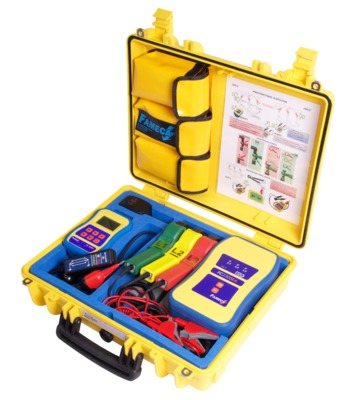

- Device packaged in a robust case

ADVANTAGES :
• Designed to fulfil latest safety procedure for working on disconnected cables earthed on both ends, including the « secure ID ».
• Signal confined in conductors to avoid signal on screen and earthing circuits, for secure ID on any type of Energy Cables.
• All necessary information available in time without commuting or removing the protections.
• Seamless operation from earthing to service restoration.

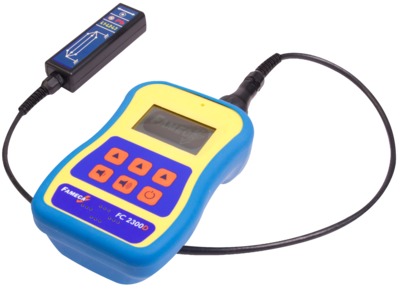

• New probe “Pointer” that pin point accurately the right cable whatever the type of cable (XLPE, Paper lead, Steel armored..)
• Phase ID on ONE side of the cable cut (voice message and/or digital acknowledgement)

FC2300CPFR = Weight (kg): 9 , Colours L1 L2 L3: Green - Yellow - Red , Dimensions (mm): 430 x 360 x 185
FC2300CPEU = Weight (kg): 9 , Colours L1 L2 L3: Red - Black - Grey , Dimensions (mm): 430 x 360 x 185
FC2300CPGB = Weight (kg): 9 , Colours L1 L2 L3: Red - Yellow - Blue , Dimensions (mm): 430 x 360 x 185
