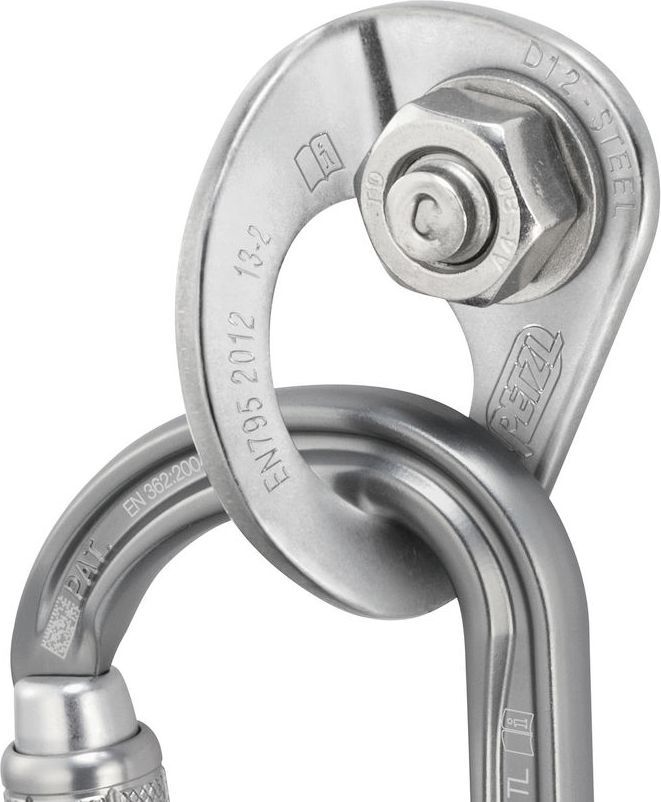

COEUR BOLT anchor (pack of 20)
The COEUR BOLT is a anchor made up of a COEUR hanger, a bolt, and a nut. It is available in 10 and 12 mm diameters.
Description
Assembly composed of a COEUR hanger, a bolt, and a nut

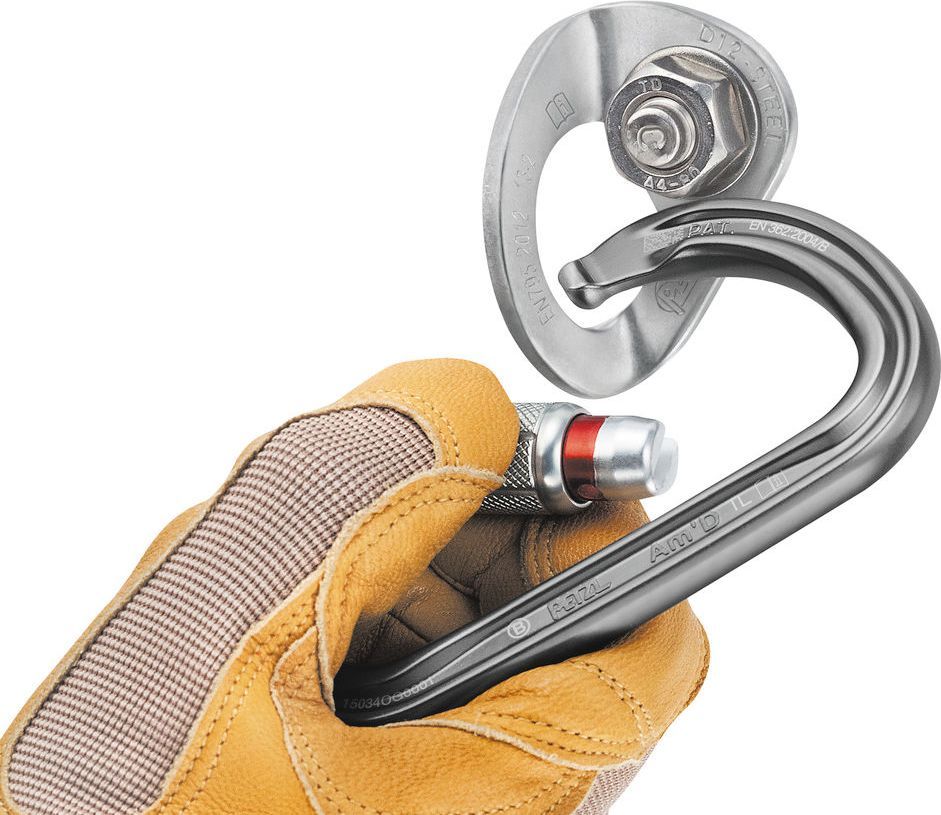

Easy to clip:
- the wide, ergonomic connection point facilitates carabiner clipping
- the width of the attachment point allows installation of two carabiners at the same time
Reduces wear on connectors: the thickness of the hanger and the rounded edges of the connection point minimize wear on connectors
Hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
Available in two bolt sizes (10 or 12 mm)
Specifications
Certification(s): EN 959
COEUR hangers, available separately:

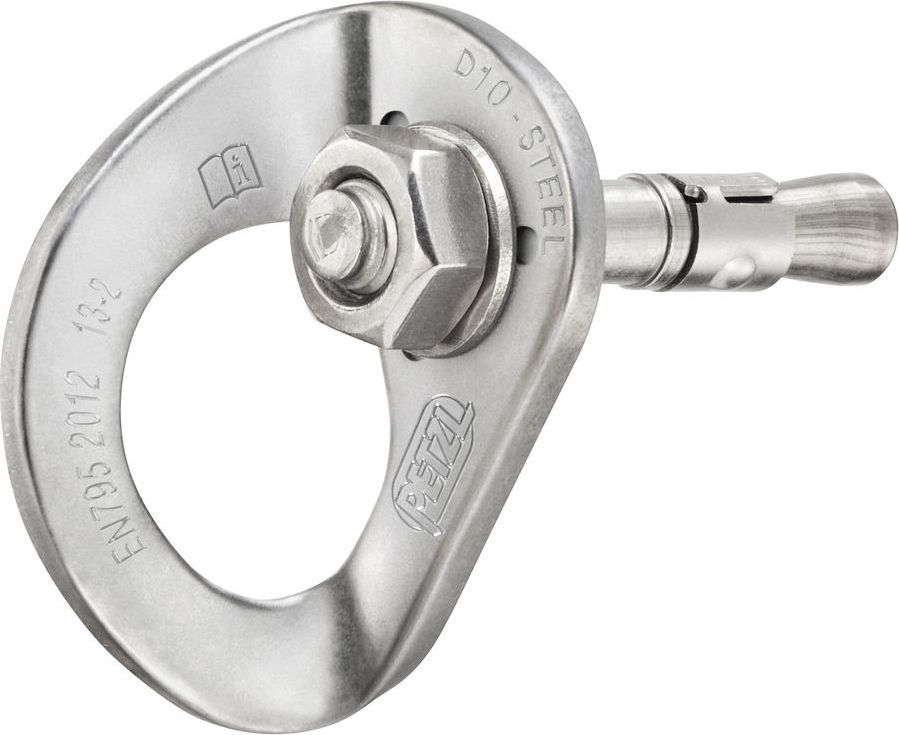

COEUR BOLT STEEL Standard steel anchor for interior use or non-permanent installations (pack of 20)
References P36BA 10
Diameter 10 mm
Drilling diameter 10 mm
Total bolt length 85 mm
Shear strength in 50 MPa concrete 23 kN
Pull-out strength in concrete 50 MPa 15 kN
References P36BA 12
Diameter 12 mm
Drilling diameter 12 mm
Total bolt length 105 mm
Shear strength in 50 MPa concrete 25 kN
Pull-out strength in concrete 50 MPa 18 kN
COEUR BOLT STAINLESS 316L High quality stainless steel anchor for typical exterior use (pack of 20)
References P36BS 10
Diameter 10 mm
Drilling diameter 10 mm
Total bolt length 70 mm
Shear strength in 50 MPa concrete 25 kN
Pull-out strength in concrete 50 MPa 15 kN
References P36BS 12
Diameter 12 mm
Drilling diameter 12 mm
Total bolt length 85 mm
Shear strength in 50 MPa concrete 25 kN
Pull-out strength in concrete 50 MPa 18 kN
Цена без ДДВ
| Fall Protection | |
|---|---|
| FP Options | STEEL or STAINLESS |
| FP Options | Ø M10 Bolts and Nuts or Ø M12 Bolts and Nuts |
| Others | |
| Brand | PETZL |
