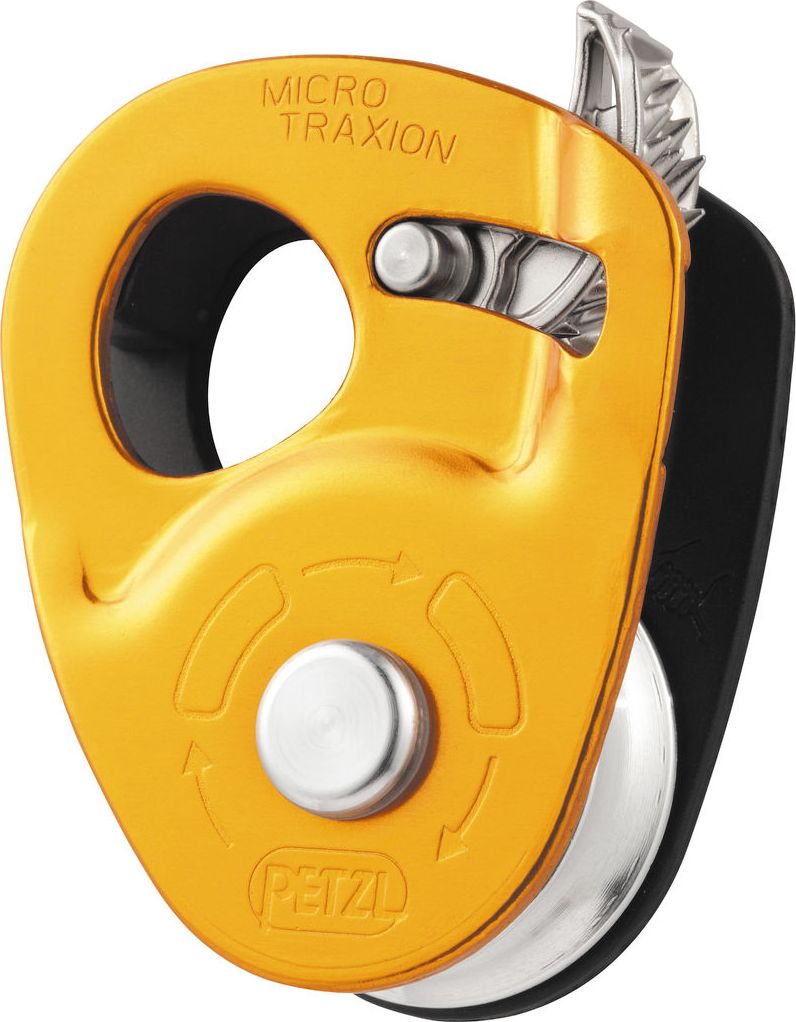

MICRO TRAXION High-efficiency lightweight progress-capture pulley

MICRO TRAXION is an ultra-compact, extremely light progress capture pulley that is exceptionally efficient. The cam can be locked in open position so the device can be used as a simple pulley.

Description
Ultra-compact and lightweight
Versatile:
- toothed cam with self-cleaning slot optimizes performance under any conditions: frozen or dirty ropes...

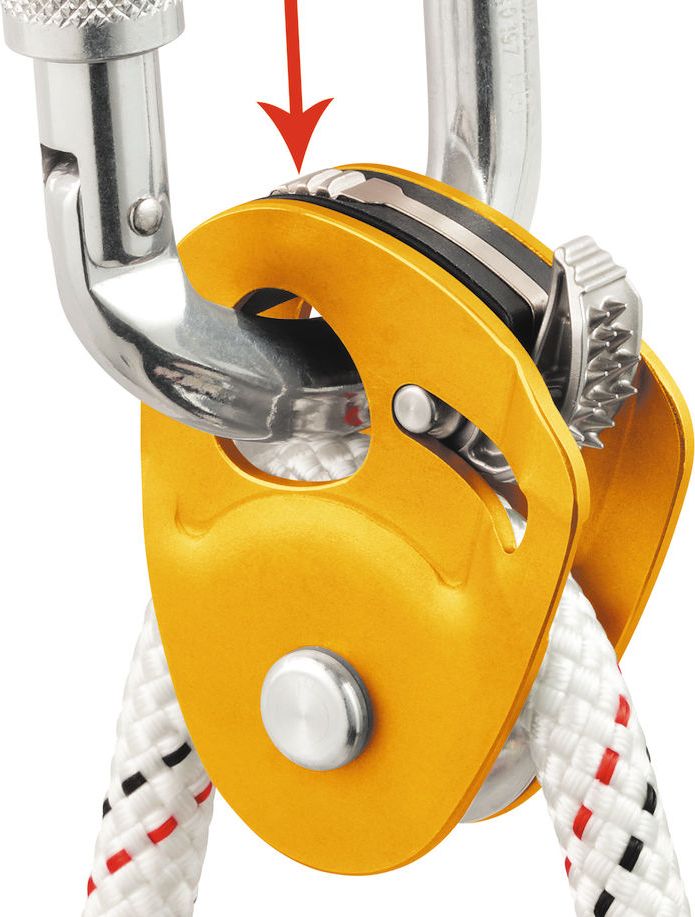

- may be used as simple pulley by locking the cam in the raised position
Aluminum sheave mounted on sealed ball bearings for excellent efficiency

Specifications
Rope compatibility: 8 to 11 mm
Sheave diameter: 27 mm
Ball bearings: yes
Efficiency: 91 %
Maximum working load - pulley: 2,5 x 2 = 5 kN
Maximum working load - rope clamp: 2,5 kN
Weight: 85 g
Certification(s): CE EN 567, EAC
Material(s): aluminum, steel, stainless steel, nylon
