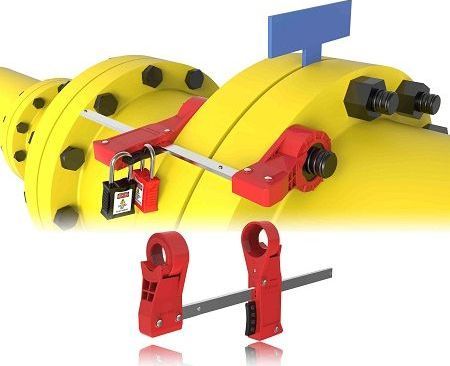

F68 Blind Flange Lockout

a. Main Part: wear resistant and corrosion resistant.Fixed base can be freely combined with accessories.
b. Metal Slider: the whole is stainless steel plate, slider with tooth and fixed screw
c. Control handle: Press down to move the metal slider forward and backward
d. Fixed screw: Mainly used for fixed fittings, and tighten the screw.
Recommended Nut Diameter 32mm-47.8mm
Pipe Diameter Range 88.9mm-304.8mm
Pipe Flange Width Range 95.3mm-274.6mm

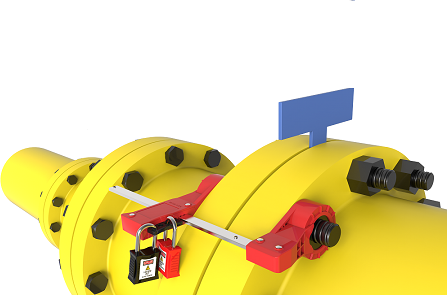

· Device fully conceals flange bolts preventing access to the blind until all work has been completed
· Adjustable device provides a tight fit, adapting to multiple flanged pipe applications
· Four lockout holes allow for multiple workers to lockout device at one time
· Durable aluminum and hardened steel construction withstands conditions indoors and out

Item: Recommended Nut Diameter Pipe Diameter Range Pipe Flange Width Range

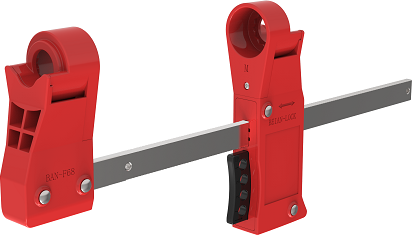

F68S Blind Flange Lockout (Small) 19mm-28.7mm 12.7mm-76.2mm 38.1mm-143.3mm
F68M Blind Flange Lockout (Medium) 32mm-47.8mm 88.9mm-304.8mm 95.3mm-274.6mm
F68L Blind Flange Lockout (Large) 51.2mm-69.9mm 355.6mm-609.6mm 196.9mm-447.8mm

Fabric/Materials
Main Part: Made of engineering reinforce nylon PA
Metal Slider: made of stainless steel
